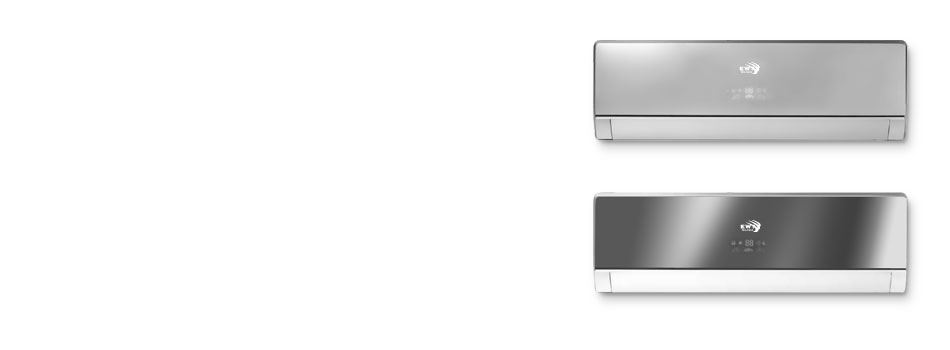

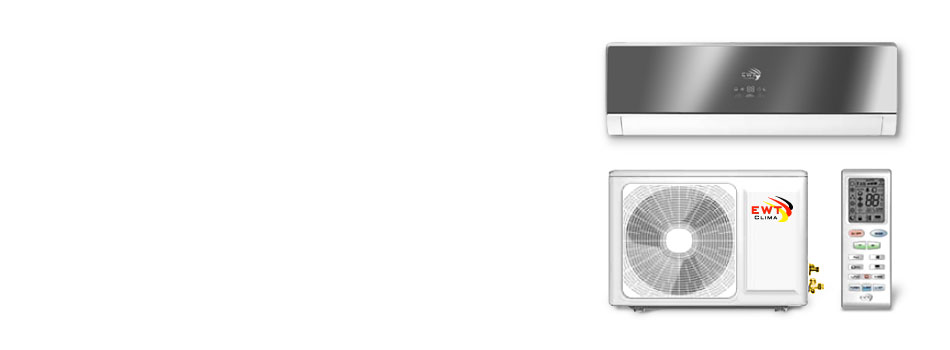

EWT Clima C-09GAM / C-12GAM / C-09GAR / C-12GAR

Wall Split

The optimal choice for standard apartments: provide comfort and air quality, compact and reliable!

---

FEATURES AND OPTIONS:

• Compact, stylish design and two colors to choose from
• High-performance double filter
• Supertihy (only 22 dB).
• Designed specifically for bedrooms

---

Air cleaner:

• Carbon filter (included)
• Catechin filter (included)
• Filter with silver ions (optional)
• Photocatalytic filter (optional)
• Anti-bacterial filter (optional)

---

Specifications

Model			C-09GA*	C-12GA*
Cooling capacity		Btu / h	9000	12000
		W	2750	3550
Heat productivity		Btu / h	9600	12800
		W	2900	3900
EER/C.O.P.		W/W	3,41/3,61	3,21/3,61
Supply voltage		A, V, Hz	1, 220-240, 50	1, 220-240, 50
Power consumption	Cooling / Heating	W/W	806/803	1105/1080
Operating current	Cooling / Heating	A	4,35/5	5,65/5,87
Indoor unit
Air flow		m3 / h	520	560
Noise level	(Max / High / Wed / Min)	dB (A)	36/32/28/22	37/32/29/24
Dimensions	without packing	mm	872X188X283	872X188X283
	with packaging	mm	935X375X260	935X375X260
Weight	Net / Gross	kg	10/13	10/13
Outdoor Unit
Noise level		dB (A)	50	52
The diameters of pipelines	gas	mm (inch)	9,52 (3/8)	9,52 (3/8)
	fluid	mm (inch)	6 (1/4)	6 (1/4)
Max. length / height difference		m	5/10	5/10
Dimensions	without packing	mm	848×540×320	848×540×320
	with packaging	mm	878X360X580	878X360X580
Weight	Net / Gross	kg	32/37	35/40
Operating temperature	outdoor air	ºC	-7~+43	-7~+43



Features and Options

	R-410a ozone-safe freon
	Highly efficient dual filter
	Automatic defrost
	Comfort sleep mode
	Hot start
	Turbo mode
	Auto-control mode
	LED status display
	Auto restart
	Office air conditioning with remote control
	24-hour timer
	Automatic self-test function. protection
	Block remote
	Compact design
