For comfortable living
the optimal choice for standard apartments: provide comfort and air quality, compact and reliable!

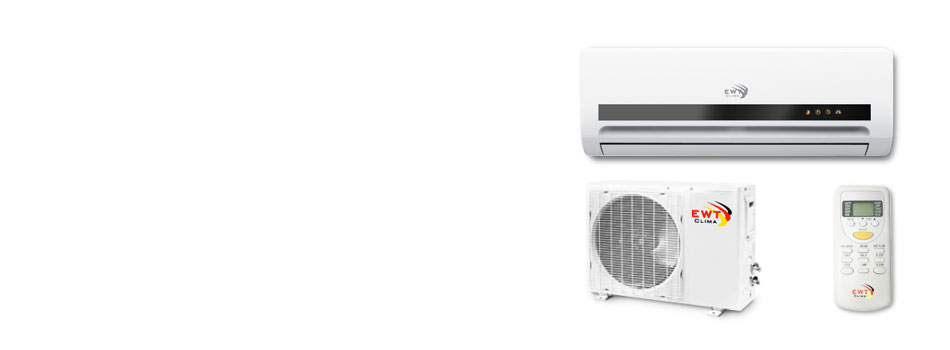

| Model | G-302CS | G-362CS | ||
|---|---|---|---|---|
| Cooling capacity | Btu / h | 8800 | 10000 | |
| Heat productivity | Btu / h | 9200 | 11000 | |
| EER/C.O.P. | W/W | 2,65/2,73 | 2,6/2,67 | |
| Supply voltage | A, V, Hz | 1, 220-240, 50 | 1, 220-240, 50 | |
| Power consumption | Cooling / Heating | W/W | 3122/3270 | 3680/4110 |
| Operating current | Cooling / Heating | A | 14,2/14,9 | 16,5/18,4 |
| Indoor unit | ||||
| Air flow | m3 / h | 1250 | 1250 | |
| Noise level | dB (A) | 43~49 | 43~49 | |
| Dimensions | without packing | mm | 1225×330×245 | 1225×330×245 |
| with packaging | mm | 1445×410×320 | 1445×410×320 | |
| Weight | Net / Gross | kg | 20/25 | 20/25 |
| Outdoor Unit | ||||
| Noise level | dB (A) | 59 | 64 | |
| The diameters of pipelines | gas | mm (inch) | 15,88 (5/8) | 19,05 (3/4) |
| fluid | mm (inch) | 9,52 (3/8) | 9,52 (3/8) | |
| Max. length / height difference | m | 15/5 | 15/5 | |
| Dimensions | without packing | mm | 900×330×835 | 1000x350x990 |
| with packaging | mm | 1030×440×960 | 1145×475×1120 | |
| Weight | Net / Gross | kg | 65/80 | 98/106 |
 |
Coarse filter the air |
 |
Function Anti Mold |
 |
The optimum air distribution |
 |
Comfort sleep mode |
 |
Hot start |
 |
Turbo mode |
 |
Auto-control mode |
 |
LED status display |
 |
Auto restart |
 |
Office air conditioning with remote control |
 |
24-hour timer |
 |
Automatic self-test function. protection |
 |
R-22 - most wanted refrigerant |
