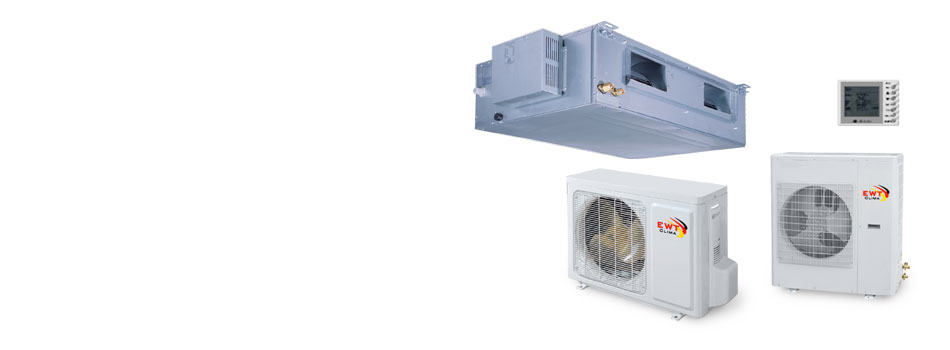

A notable feature of the channel is flush-mounted air conditioners. They are installed in zapotolochnom space and air flow through the system through the air intake grilles, which are embedded in the ceiling. This allows the air conditioner to make visible, and the shape, size and color grids to select a design and style of the room.
In addition, air-conditioning duct, in contrast to other types of split systems can serve multiple premises. The range of cooling systems, duct split type EWT Clima is huge - from 5 to 13 kW. Ducted air conditioning EWT Clima perfect for conditioning of apartments, houses, offices, restaurants and shopping centers as well as conditioning of industrial facilities: shops and warehouses.
A distinctive feature of such systems is the ability to apply not only to cold air, but also to provide ventilation, carrying the processed outdoor air supply. Low noise and compact often you will want make these systems more attractive to consumers. Due to the high pressure of the fan the opportunity to effectively cool the air space of the system of large area or several different rooms simultaneously. Distribution of air duct provides uniform distribution of cold on the remises without
a temperature zones.
Model | B18GH | B24GH | B36GH | B48GH | B60GH | ||
---|---|---|---|---|---|---|---|
Cooling capacity | Btu / h | 17060 | 24000 | 34100 | 45000 | 52000 | |
W | 5000 | 7000 | 10000 | 13200 | 15000 | ||
Heat productivity | Btu / h | 19448 | 25250 | 40000 | 47770 | 63120 | |
W | 5700 | 7500 | 11720 | 14000 | 16500 | ||
EER/C.O.P. | W/W | 2,38/3,00 | 2,59/2,88 | 2,44/3,17 | 2,49/2,69 | 2,34/3,00 | |
Supply voltage | A, V, Hz | 1, 220-240, 50 | 1, 220-240, 50 | 3, 380-415, 50 | 3, 380-415, 50 | 3, 380-415, 50 | |
Power consumption | Cooling / Heating | W/W | 2,10/1,90 | 2,70/2,60 | 4,10/3,70 | 5,30/5,20 | 6,40/5,50 |
Operating current | Cooling / Heating | A | 10,0/9,00 | 12,6/11,9 | 7,2/6,7 | 10,9/7,7 | 12,3/11,1 |
Indoor unit | |||||||
Air Consumption | (H / Wed / Low) | m3 / h | 840/750/680 | 1600/1400/1200 | 2000/1900/1800 | 2300/2110/1850 | 2500/2070/1730 |
Ext. static pressure | Pa | 25 | 100 | 150 | 150 | 150 | |
Noise level | (H / Wed / Low) | dB (A) | 42/40/38 | 47/44/42 | 50/48/46 | 53/50/46 | 53/50/48 |
Dimensions | without packing | mm | 1012×736×266 | 1270×530×268 | 1226×775×290 | 1226×775×290 | 1226×815×330 |
with packaging | mm | 1123×798×323 | 1348×597×283 | 1338×837×305 | 1338×837×305 | 1338×886×345 | |
Weight | Net / Gross | kg | 34/41 | 37/43 | 54/61 | 57/67 | 66/76 |
Outdoor Unit | |||||||
Noise level | dB (A) | 56 | 59 | 60 | 60 | 64 | |
The diameters of pipelines | gas | mm (inch) | 12 (1/2) | 15,88 (5/8) | 19,05 (3/4) | 19,05 (3/4) | 19,05 (3/4) |
fluid | mm (inch) | 6 (1/4) | 9,52 (3/8) | 12 (1/2) | 12 (1/2) | 12 (1/2) | |
height/length | m | 15/20 | 15/30 | 30/50 | 30/50 | 30/50 | |
Dimensions | without packing | mm | 820×320×540 | 1018×412×695 | 1018×412×840 | 1032×412×1250 | 1032×412×1250 |
with packaging | mm | 873×363×605 | 1028×453×1000 | 1103×453×1300 | 1113×453×1400 | 1113×453×1400 | |
Weight | Net / Gross | kg | 44/48 | 64/68 | 91/96 | 107/114 | 121/132 |
The drain pump (optional) | |
Highly efficient and energy-saving air-conditioning | |
Intelligent system for defrosting the outdoor unit | |
Hot start | |
The compact design | |
Evaporator with a high coefficient of thermal conductivity | |
Removable washable filter | |
The engine of the outdoor unit with low noise | |
Quiet operation and maintenance tech | |
lock the keypad | |
The large distance between the outer and the inner block |
