EWT FREE MATCH
MXZ-2G50GAS / MXZ-2G70GAS / MXZ-3G70GAS / MXZ-4G80GAS / MXZ-4G100GAS / MXZ-5G125GAS

multi-split system DC inverter type

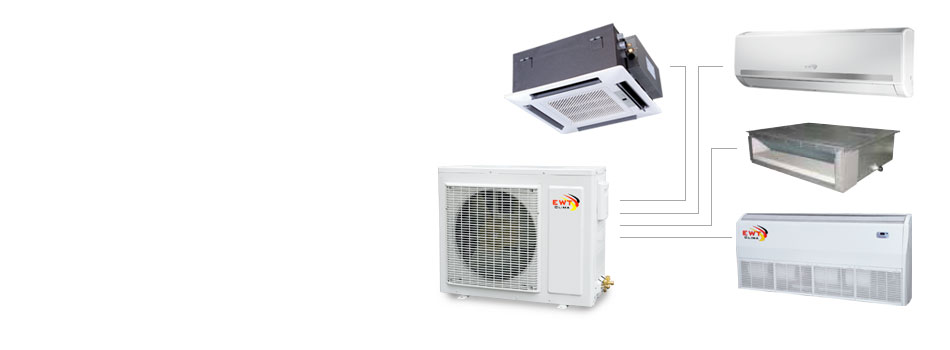

a multi-split system DC inverter type, which consists of an outdoor unit and 1-5 different internal

---

Specifications

Outdoor Unit

Model			MXZ-2G50GAS	MXZ-2G70GAS	MXZ-3G70GAS	MXZ-4G80GAS	MXZ-4G100GAS	MXZ-5G125GAS
Number of connectable indoor units			1-2	1-2	2-3	2-4	1-4	1-5
Cooling capacity		Btu / h	17000 (7000~21200)	24000 (9200~28000)	24000 (7500~34100)	27296 (7500~34100)	33400 (10200~34100)	39500 (11900~46400)
Heat productivity		Btu / h	19000 (8500~22700)	26000 (11900~32400)	29000 (12300~37500)	32000 (9600~37500)	37500 (15300~40900)	44300 (15300~47700)
EER/C.O.P.		W/W	3,23/3,63	3,21/3,41	3,21/3,62	3,23/3,63	3,23/3,65	3,23/3,66
Supply voltage		A, V, Hz	1, 220-240, 50	1, 220-240, 50	1, 220-240, 50	1, 220-240, 50	1, 220-240, 50	1, 220-240, 50
Power consumption	Cooling	W	1550 (500~2550)	2180 (750~4300)	2200 (650~4500)	2480 (650~4500)	3030 (1300~4600)	3590 (1300~4900)
	Heating	W	1540 (580~2700)	2260 (1000~4400)	2350 (980~3950)	2550 (980~3950)	3010 (1300~4140)	3545 (1300~4400)
Air Consumption		m3 / h	2600/2300/1600	3300/2900/2400	3300/2900/2400	3300/2900/2400	3000	5500
Noise level		dB (A)	56/53/50	58/54/52	58/54/52	59/56/53	54	54
The diameters of pipelines	gas	mm (inch)	9.52	9.52	9.52	9.52	15.9	15.9
	fluid	mm (inch)	6	6	6	6	9.52	9.52
Dimensions	without packing	mm	899×596×378	955×700×396	955×700×396	955×700×396	950×412×840	1015×440×1103
	with packaging	mm	948×645×420	1029×750×458	1029×750×458	1029×750×458	1103×453×920	1158×493×1235
Weight	Net / Gross	kg	43/48	59/64	59/64	60/65	73/78	102/112

Notes:

Outside. unit MXZ-4G100GAS (36,000 Btu / h) has a 4-port connection connecting pipes:

• 15.9 mm (gas), 9.52 mm (liquid);
• 12.7 mm (gas), 6.35 (liquid);
• 9.52 mm (gas), 6.35 (liquid);
• 9.52 mm (gas), 6.35 (liquid);

Outside. unit MXZ-5G125GAS (42,000 Btu / h) has a 5-port connection connecting pipes:

• 15.9 mm (gas), 9.52 mm (liquid);
• 12.7 mm (gas), 6.35 (liquid);
• 9.52 mm (gas), 6.35 (liquid);
• 9.52 mm (gas), 6.35 (liquid);
• 9.52 mm (gas), 6.35 (liquid);

---

Indoor Unit

Wall Model			S-M07GAS	S-M09GAS	S-M12GAS	S-M18GAS
Cooling capacity		Btu / h	7200	8900	11900	18100
Heat productivity		Btu / h	8900	9600	13000	19800
Air Consumption		m3 / h	450	500	630	850
Noise level		dB (A)	36/34/31/28	37/34/31/28	38/34/32/30	46/43/40/36
Dimensions	without packing	mm	790×265×170	790×265×170	845×275×180	940×298×200
	with packaging	mm	873×370×251	873×370×251	918×370×258	1013×395×288
Weight	Net / Gross	kg	9/12	9/12	10/13	13/17

Duct Model			B-M09GAS	B-M12GAS	B-M18GAS	B-M21GAS	B-M24GAS
Cooling capacity		Btu / h	8530	11942	17060	20472	24225.2
Heat productivity		Btu / h	2800	3850	5500	6600	8000
Air Consumption		m3 / h	450	550	700	1000	1000
Noise level		dB (A)	37	39	40	42	42
Dimensions	without packing	mm	700×200×615	700×200×615	900×200×615	1100×200×615	1100×200×615
	with packaging	mm	890×290×740	890×290×740	1120×290×740	1320×290×740	1320×290×740
Weight	Net / Gross	kg	22/27	24/29	25/30	29/35	29/35

Cassette Model			T-M12GAS	T-M18GAS	T-M24GAS
Cooling capacity		Btu / h	3500	5000	7100
Heat productivity		Btu / h	3850	5500	8000
Air Consumption		m3 / h	680	680	1180
Noise level		dB (A)	42	42	42
Dimensions	without packing	mm	840×190×840	840×190×840	840×240×840
	with packaging	mm	1040×115×1025	1040×115×1025	1040×115×1025
Weight	Net / Gross	kg	25/33	25/33	30/38
Panel
Dimensions	without packing	mm	950×60×950	950×60×950	950×60×950
	with packaging	mm	960×257×960	960×257×960	960×257×960
Weight	Net / Gross	kg	6,5/10	6,5/10	6,5/10



Features and Options

• Different types of outdoor unit capacity up to 47,000 Btu / h and the indoor units from the usual split up channel type can satisfy any request
• With six outdoor and 17 indoor units can be more than 380 different combinations
• DC inverter technology allows the system to operate with low power consumption, low noise and efficiency vyskoim
• Work on cooling in cold outside air temperature to -15ºC

	Highly efficient and energy-saving air-conditioning
	Intelligent system for defrosting the outdoor unit
	The compact design
	Quiet operation and maintenance tech
